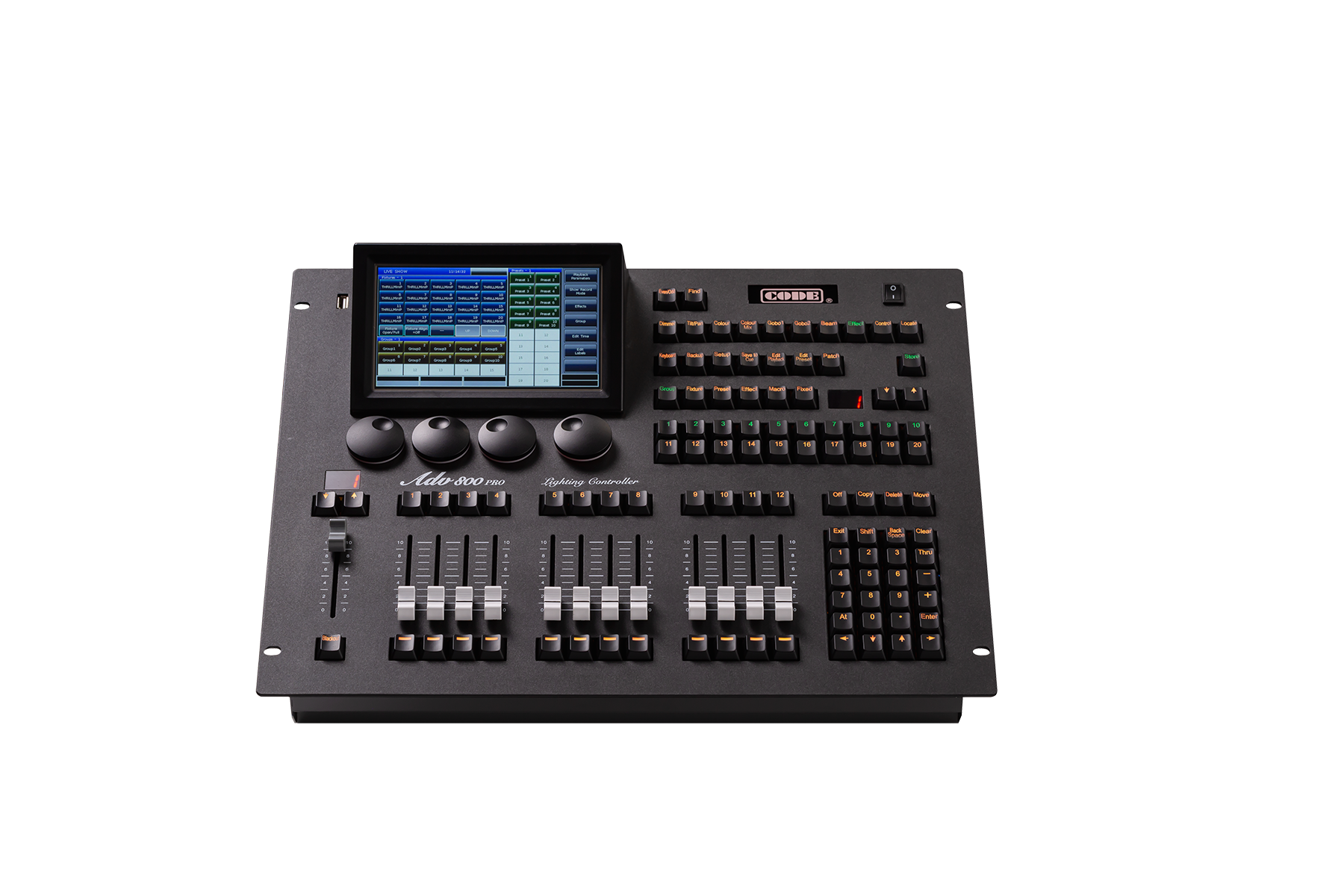

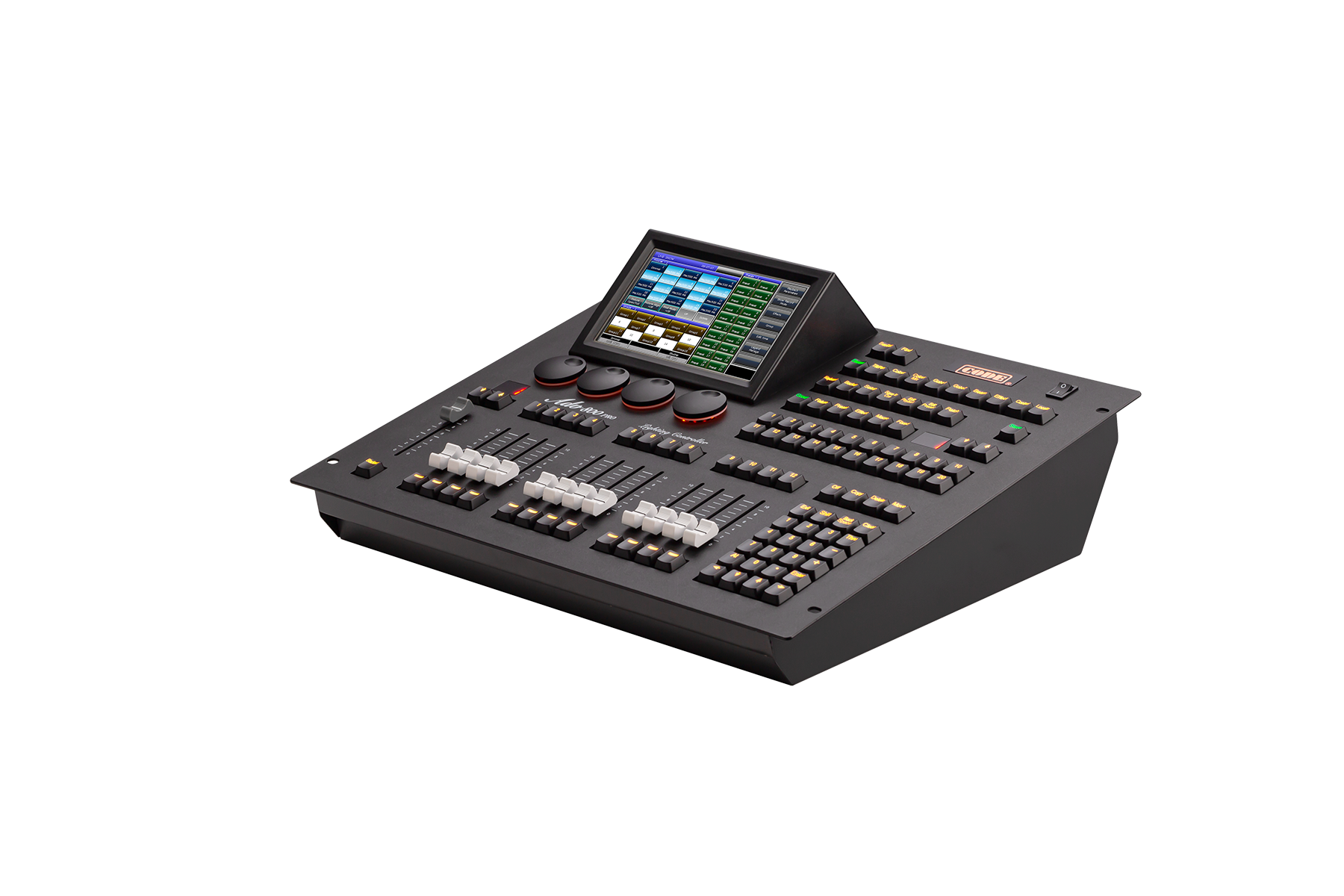

ADV 800 Lighting Controller

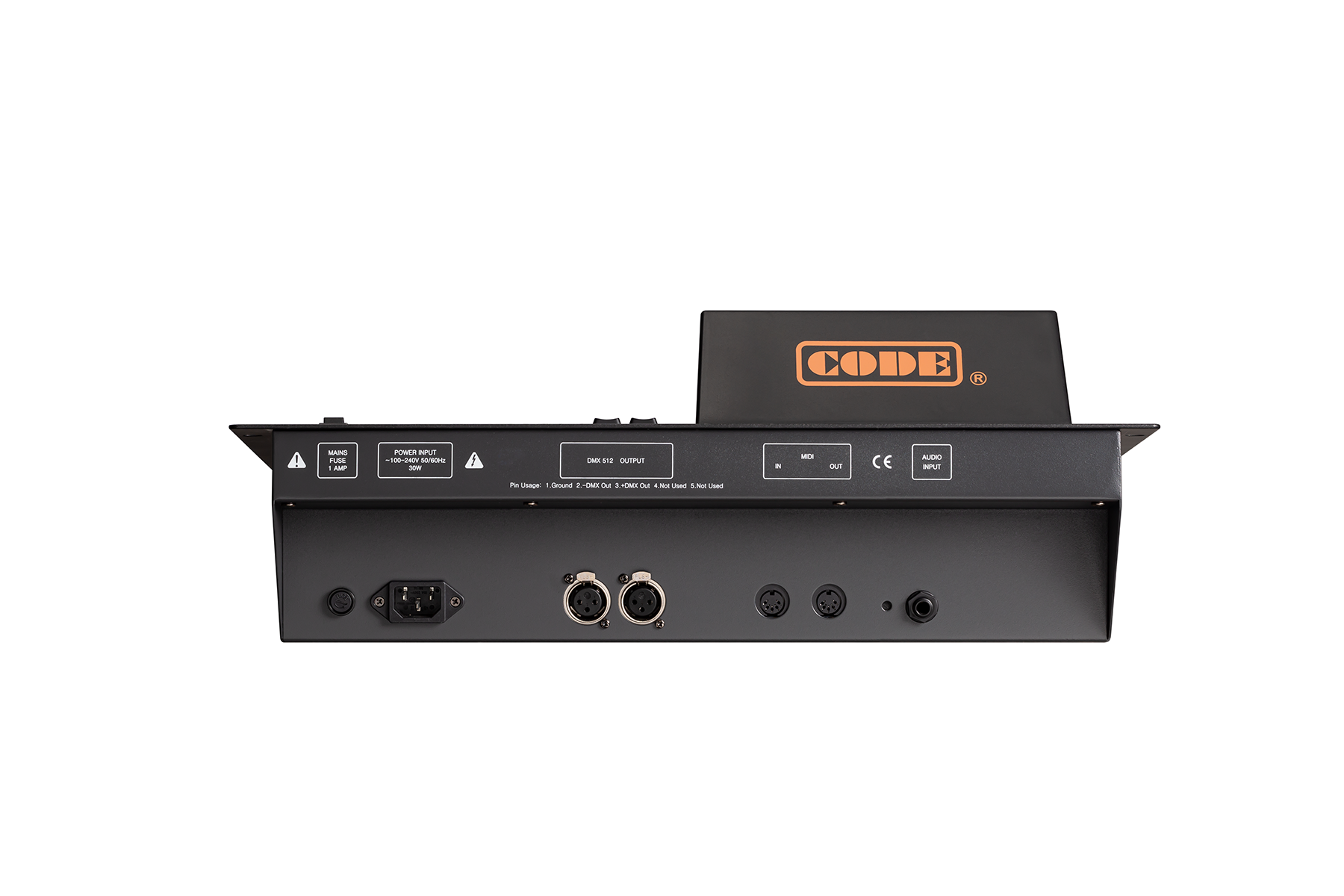

· Total 512 channels. Offer 2 individual optical isolated DMX interfaces.
· 7" TFT-LCD touch screen for operating.
· Keys take with backlight and highlight which colours can be changed into red, green or yellow.
· Offers 4 optical encoders with backlight for details setting.
· Up to 600 playbacks can be programmed which controlled by 12 playback faders × 50 pages. Totally 12 playbacks can be run simultaneous.
· Maximum 400 Units for patching all kinds of Fixtures.
· Up to 400 Groups.
· Up to 400 Presets.
· Up to 400 user-defined shape effects.
· Up to 400 Macro Shows can be saved which allow to be triggered by external MIDI time code or internal clock.
· Shortcut area provides a quick way for selecting Fixtures, Groups, Presets, Custom Effects and Macro Shows.

· Color-mix system provides a palette for users to control fixtures with RGB or CMY channels more conveniently.
· Shape Generator provides various effects which can be modified with different parameters. User-defined shape effects can be saved for convenient calling out again.
· Provides 5 levels precedence for playbacks.
· Offer attributes times for playbacks.
· Provide over 8000 Libraries in system. Enable users to edit system library or create custom Library.
· Upgrade version and system library are freely offered on website.
· An internal electronic disk allows user to backup show data.
· USB interface allows users to backup shows in external disk.
· Provide MIDI in and out interfaces to connect and work with other consoles.
· Power supply: AC100-240V, 50-60Hz.
· Size: 482mm × 400mm × 167mm.
· Net weight: 8.5Kg approx.
Description Date Size Download Help
Fixture Library 2021-10-21 4.7MB


Firmware

Version Date Size Download Help
5.6.7 2018-9-27 1.28MB
Description
Description Format Size Download
Manual .pdf 4.60MB
